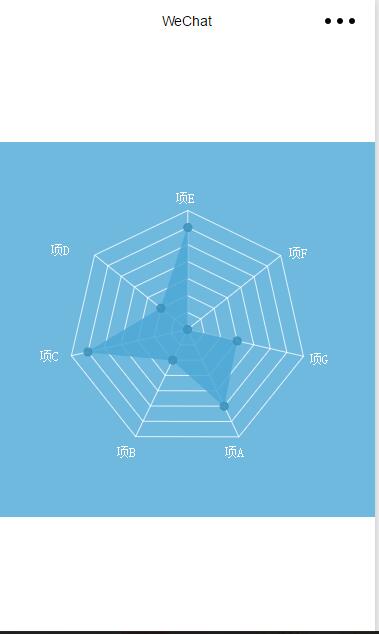

canvas手绘雷达图
|
001
002
003
004
005
006
007
008
009
010
011
012
013
014
015
016
017
018
019
020
021
022
023
024
025
026
027
028
029
030
031
032
033
034
035
036
037
038
039
040
041
042
043
044
045
046
047
048
049
050
051
052
053
054
055
056
057
058
059
060
061
062
063
064
065
066
067
068
069
070
071
072
073
074
075
076
077
078
079
080
081
082
083
084
085
086
087
088
089
090
091
092
093
094
095
096
097
098
099
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
|
let width = 750; // canvas的宽
let height = 750; // canvas的高
let angleNum = 7; // 角数，即多少个数据项 【3，10】
let angleAvg = 360 / angleNum; // 分角度平均值
let angleOffset = 13; // 角度偏移量
let layerNum = 7; // 层数，即环层数量
let layerWidth = 0; // 层宽
let bgLineColor = ‘#ffffff’; // 背景线条颜色
let bgLineWidth = 0; // 背景线条宽度
let centerPoint = [0, 0]; // 中心点坐标
let layerPoints = []; // 各层上的点
let wordColor = ‘#ffffff’; // 字体颜色
let fontSize = 0; // 字体大小
let wordArr = [‘项A’, ‘项B’, ‘项C’, ‘项D’, ‘项E’, ‘项F’, ‘项G’]; // 字体数组
let wordOffset = [[0, 0], [0, 0], [0, 0], [0, 0], [0, 0], [0, 0], [0, 0]];
let circleWidth = 0; // 圆点宽度
// 绘制的雷达比例数据
let dataArr = [5, 2, 6, 2, 6, 0, 3];
let context =null;
let windowWidth = 0;
let radar = {
init: function(data) {
centerPoint = [rpx(375), rpx(375)];
layerWidth = rpx(34);
bgLineWidth = rpx(1.6);
fontSize = rpx(26);
circleWidth = rpx(8);
wordOffset = [
[rpx(-30), rpx(40)],
[rpx(40), rpx(40)],
[rpx(65), rpx(10)],
[rpx(90), rpx(0)],
[rpx(-25), rpx(15)],
[rpx(15), rpx(-5)],
[rpx(10), rpx(15)]
];
},
draw: function(data) {
let n = 0, m = 0, k = 0;
this.init(data);
//画背景线条
context = wx.createContext();
context.setLineWidth(bgLineWidth);
context.setStrokeStyle(bgLineColor);
context.beginPath();
context.setFontSize(fontSize);
context.setFillStyle(wordColor);
for(n = 0; n < layerNum; n++) {
layerPoints[n] = [];
for(k = 0; k < angleNum; k++) {
context.moveTo(centerPoint[0], centerPoint[1]);
let offsetX = layerWidth * (n + 1) * getXParam(angleAvg * (k + 1) + angleOffset);
let offsetY = layerWidth * (n + 1) * getYParam(angleAvg * (k + 1) + angleOffset);
let distX = centerPoint[0] + offsetX;
let distY = centerPoint[1] + offsetY;
if(n == layerNum – 1) {
context.lineTo(distX, distY);
if(wordArr[k]) {
let wordOffsetX = offsetX >= 0 ? 1 : -1;
wordOffsetX = distX + wordOffsetX * wordOffset[k][0];
let wordOffsetY = offsetY >= 0 ? 1 : -1;
wordOffsetY = distY + wordOffsetY * wordOffset[k][1];
context.fillText(wordArr[k], wordOffsetX, wordOffsetY);
}
}
layerPoints[n][k] = [distX, distY];
}
}
for(m = 0; m < layerPoints.length; m++) {
for(n = 0; n < layerPoints[m].length; n++) {
context.moveTo(layerPoints[m][n][0], layerPoints[m][n][1]);
if(n < layerPoints[m].length – 1) {
context.lineTo(layerPoints[m][n + 1][0], layerPoints[m][n + 1][1]);
} else {
context.moveTo(layerPoints[m][n][0], layerPoints[m][n][1]);
context.lineTo(layerPoints[m][0][0], layerPoints[m][0][1]);
}
}
}
context.stroke();
// 绘制比例:
context.beginPath();
context.setStrokeStyle(“rgba(77,168,213,0.85)”);
context.setFillStyle(“rgba(77,168,213,0.85)”);
let isFirstPoint = true;
let tmpPoints = [];
for(m = 0; m < angleNum; m++) {
tmpPoints = centerPoint;
if(dataArr[m] > 0) {
for(n = 0; n < layerNum; n++) {
if(dataArr[m] == (n + 1)) {
tmpPoints = layerPoints[n][m];
break;
}
}
}
if(isFirstPoint) {
context.moveTo(tmpPoints[0], tmpPoints[1]);
isFirstPoint = false;
} else {
context.lineTo(tmpPoints[0], tmpPoints[1]);
}
}
context.fill();
context.stroke();
context.closePath();
// 绘制圆点：
for(m = 0; m < angleNum; m++) {
tmpPoints = centerPoint;
if(dataArr[m] > 0) {
for(n = 0; n < layerNum; n++) {
if(dataArr[m] == (n + 1)) {
tmpPoints = layerPoints[n][m];
break;
}
}
}
context.beginPath();
context.setStrokeStyle(“rgba(61,147,189,0.9)”);
context.setFillStyle(“rgba(61,147,189,0.9)”);
context.closePath();
context.arc(tmpPoints[0], tmpPoints[1], circleWidth, 0, 2 * Math.PI, false);
context.closePath();
context.fill();
context.stroke();
}
wx.drawCanvas({
canvasId: ‘radarCanvas’,
actions: context.getActions()
});
}
};
let rpx = (param) => {
if(windowWidth == 0) {
wx.getSystemInfo({
success: function (res) {
windowWidth = res.windowWidth;
}
});
}
return Number((windowWidth / 750 * param).toFixed(2));
};
let getXParam = (angle) => {
let param = 1;
if(angle >= 0 && angle < 90) {
param = 1;
} else if(angle >= 90 && angle < 180) {
param = -1;
angle = 180 – angle;
} else if(angle >= 180 && angle < 270) {
param = -1;
angle = angle – 180;
} else if(angle >= 270 && angle <= 360) {
param = 1;
angle = 360 – angle;
}
let angleCos = Math.cos(Math.PI / 180 * angle);
if(angleCos < 0) {
angleCos = angleCos * -1;
}
return angleCos * param;
};
let getYParam = (angle) => {
let param = 1;
if(angle >= 0 && angle < 90) {
param = 1;
} else if(angle >= 90 && angle < 180) {
param = 1;
angle = 180 – angle;
} else if(angle >= 180 && angle < 270) {
param = -1;
angle = angle – 180;
} else if(angle >= 270 && angle <= 360) {
param = -1;
angle = 360 – angle;
}
let angleSin = Math.sin(Math.PI / 180 * angle);
if(angleSin < 0) {
angleSin = angleSin * -1;
}
return angleSin * param;
};
module.exports = {
radar
};
|
